NIGHT Acoustical Panels provide cost-effective and great-performing acoustical treatment for black or dark ceilings. They can be wall-mounted, but we recommend this only when placement will be beyond reach, as the edges are exposed.
Sound Absorption
| HZ | 125 | 250 | 500 | 1000 | 2000 | 4000 | NRC |
| NIGHT 1" | 0.06 | 0.30 | 0.80 | 1.0 | 1.13 | 1.09 | 0.80 |
| NIGHT 2" | 0.34 | 0.85 | 1.19 | 1.21 | 1.20 | 1.14 | 1.10 |
| NIGHT 1" Lay-In | 0.80 | 0.96 | 0.70 | 1.00 | 1.06 | 1.08 | 0.95 |
Lay-in= Type E-400 Ceiling
Specifications

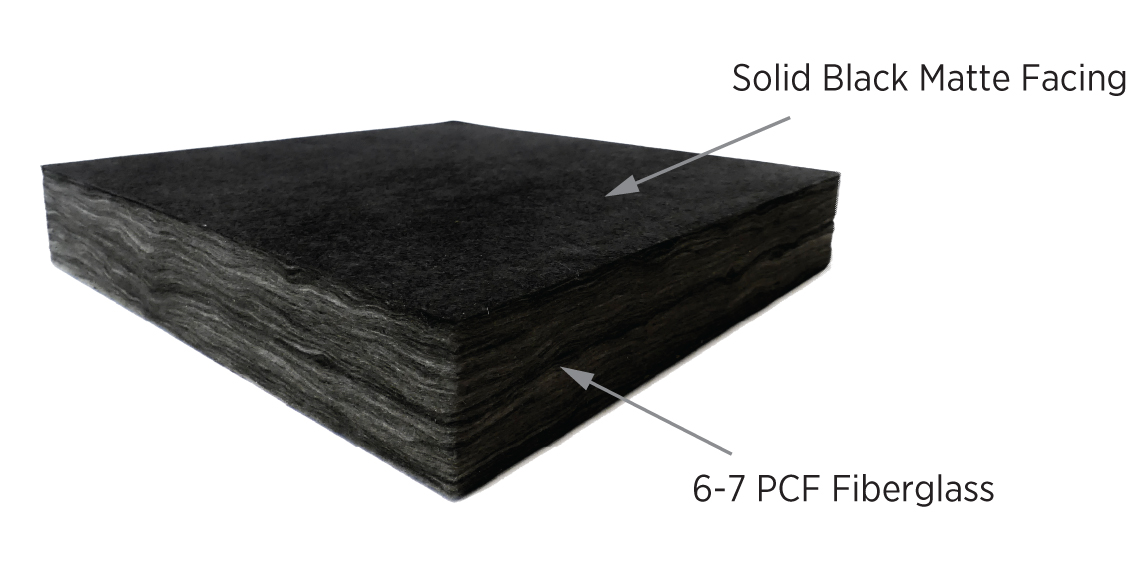

Core: 6-7 pcf fiberglass
Thickness: 1" to 2"
Finish: texture matte black only, exposed edges
Sizes: Custom sizes up to 4' x 8'
Edges: Natural
Flammability: All components have a Class “A” rating per ASTM E84
Mounting Options
Wall Mounting Options: Impaling Clips, adhesive

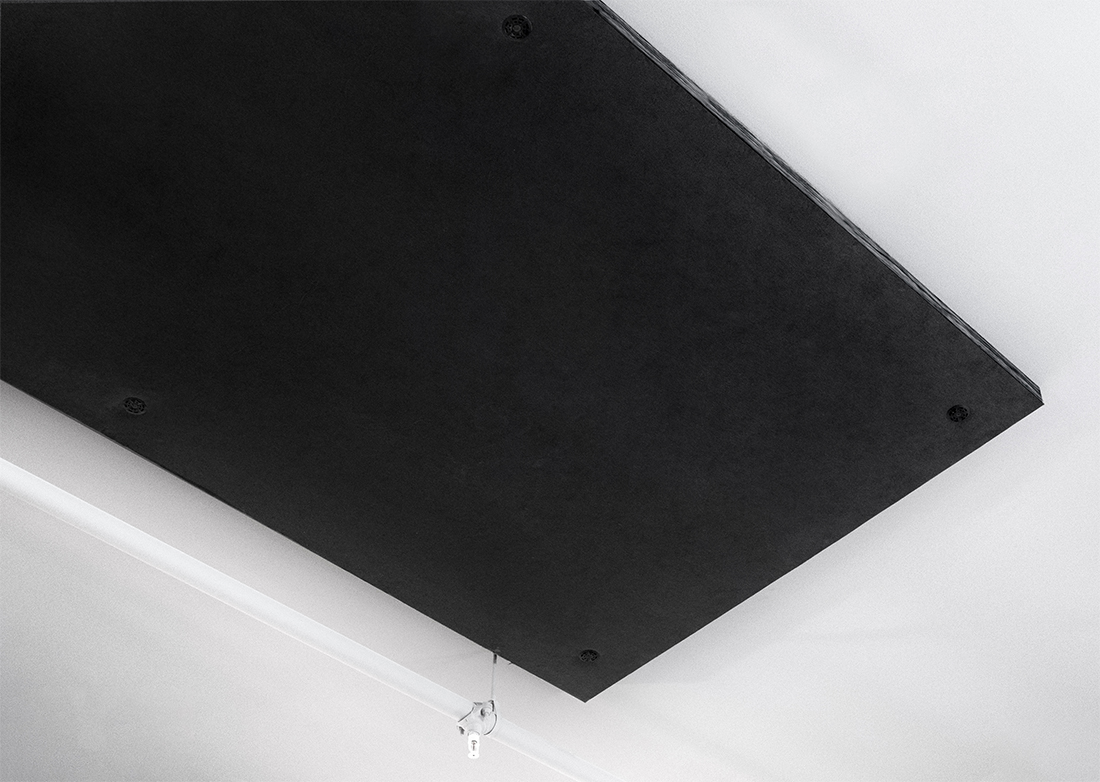

Ceiling Mounting Options: Painted Puck, Lay-in grid
(custom mounting options possible)
