Our custom diffusers are made in sizes up to 48" x 96" with two radius orientations for wall or ceiling mounting. (Additionally, we offer stocked Barrel or Pyramid Diffuser 4-Packs.)

Choose the appropriate diffuser for the acoustical issue in your room—Standard Diffusor, Low Frequency Diffusor, or Reflective Diffusor.

Diffusers come in a standard textured white finish or fabric-wrapped. Wall diffusers include a two-part clip mounting system. Ceiling diffusers have a 15/16" flange for direct ceiling mount, or to lay-in-grid.

We can provide barrel or pyramid-shaped diffusers.

• Finishing Options
• Sound Absorption Data
• Specifications
• Mounting Options
• Shipping and Receiving

Finishing Options

• white-textured finish
• fabric-wrapped
• field painted

Sound Absorption Data

Wall Diffuser (WD)

Ceiling Diffuser (CD)

Specifications

Core:

WD-ST: 0.125 Thermoformed co-polymer (recyclable), our standard diffuser

WD-LF: 0.125 Thermoformed co-polymer (recyclable), add 1-1/2", 1-1/2 pcf fiberglass backing for increased low-frequency performance,

WD-RF: 0.125 Thermoformed co-polymer (recyclable), add additional stiffener to increase reflection

Sizes:

Size up to 48" x 96"  possible.

Edges: Straight Edge, 15/16" Flange

Flammability: All class A

Custom Diffuser Section 9 Specification

Mounting Options

Wall mounting — horizontal/vertical, ceiling mounting

Wall Diffuser Install Guide

Parts List

For Diffusers with all sides 4 feet or less, the following hardware is included per Diffuser:

3 x L-Clips
2 x Z-Bars
4 x Pop Rivets
1 x Tek Screw

Placement suggestion

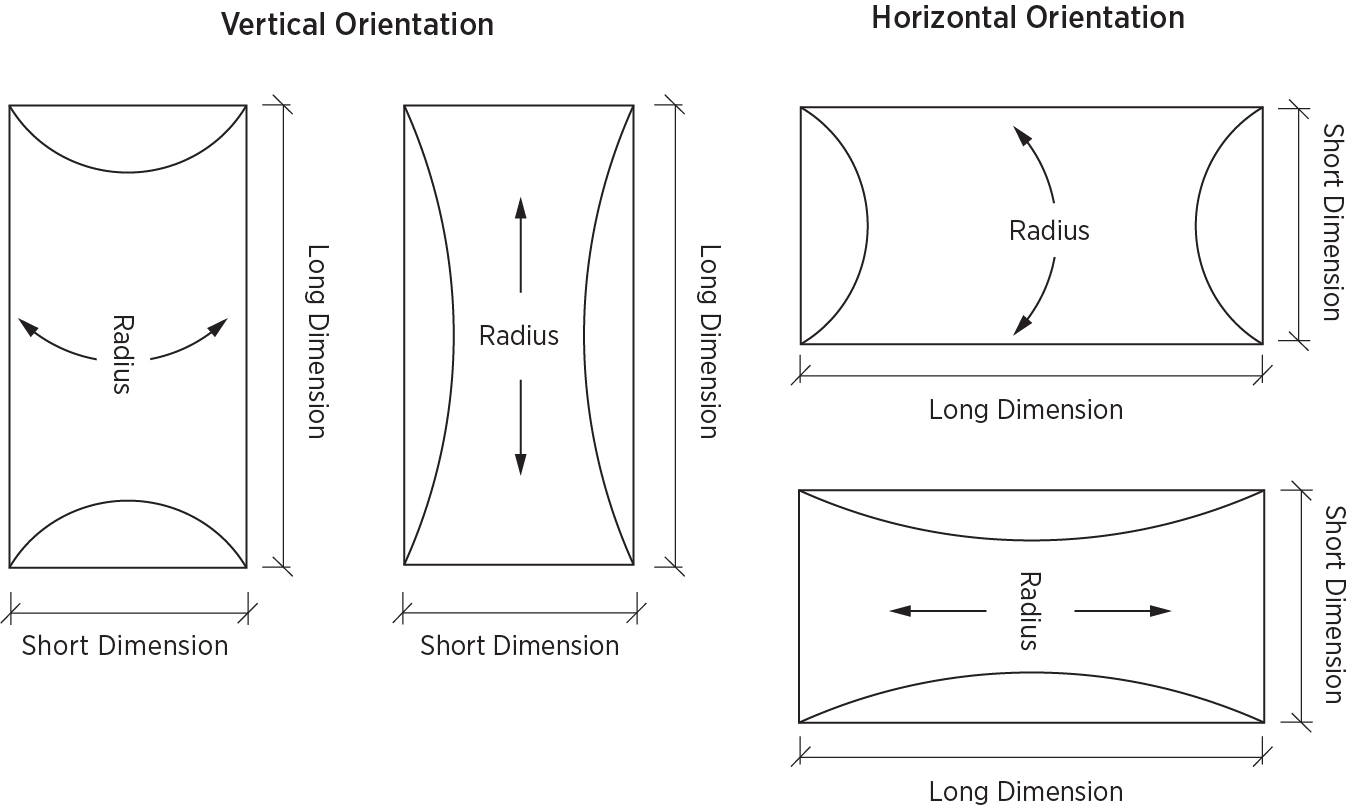

Horizontal Diffuser Orientation

Vertical Diffuser Orientation

For Diffusers with one side larger than 4 feet, the following hardware is included per Diffuser:

5 x L-Clips
3 x Z-Bars
6 x Pop Rivets
2 x Tek Screw

Placement suggestion

Horizontal Diffuser Orientation

Vertical Diffuser Orientation

Before you start:

• Have your acoustical spec on hand for reference.

• Note if design plans call for vertical or horizontal installation.
• Review included parts included for your Diffuser size:
  L-Clips, Z-Bars, Pop Rivets, and #8 Tek Screws
• Review all installation instructions and drawings.

View of L-Clip and Z-Bar along top edge	View of L-Clip mounting along bottom and sides
Important: Top clips receive Z-Bar mounting. The top of each Z-Bar should be 1/8" below the desired diffuser height. Be sure to allow 1" minimum clearance above the top of each Z-Bar for L-Clip attachment.

Instructions:

Step 1

1. Mark the location where you want to place the Diffusers.
2. Mark the perimeter edges and the location of the L-Clips. L-Clips should be at a minimum a 1/2" from the edges, and when using more than two clips per side, space them evenly. Please take a look at the suggestions above.

Step 2

1. Align top L-Clips so the 3/4" leg is flush with the edge of the diffuser.
2. Using the L-Clip as a template, mark and drill (2) 1/8" holes from the top down.
3. Insert pop-rivets from the top down and rivet L-Clip to the diffuser.

1. Mark the wall at the bottom/side edge of your Diffuser
2. Install L-Clip bracket at 1/8 of an inch higher than the bottom edge of the marking for the diffuser.

Step 3

1. Attach Z-Bars for top L-Clips to the wall using appropriate-sized fasteners (not included) to ensure they are aligned with the top L-Clips on the diffuser. Note: The top of each Z-Bar should be 1/8" below the desired diffuser height. Be sure to allow 1" minimum clearance above the top of each Z-Bar for L-Clip attachment.
2. Attach bottom and side L-Clips to the wall using appropriate-sized fasteners (not included). Note: L-Clips should be 1/8" inside the exterior edge of the diffuser.
3. Install the diffuser by dropping the top L-Clips onto the Z-Bar so they are fully engaged.
4. Be sure the exterior edge of the diffuser overlaps and hides the bottom and side L-Clips.
5. Attach the diffuser to the side and bottom L-Clips with #8 x 3/4" Tek Screw (included).

Standard and Custom Sizes are available.  Custom sizes require an additional mold fee.
