Cloud 3-Pack

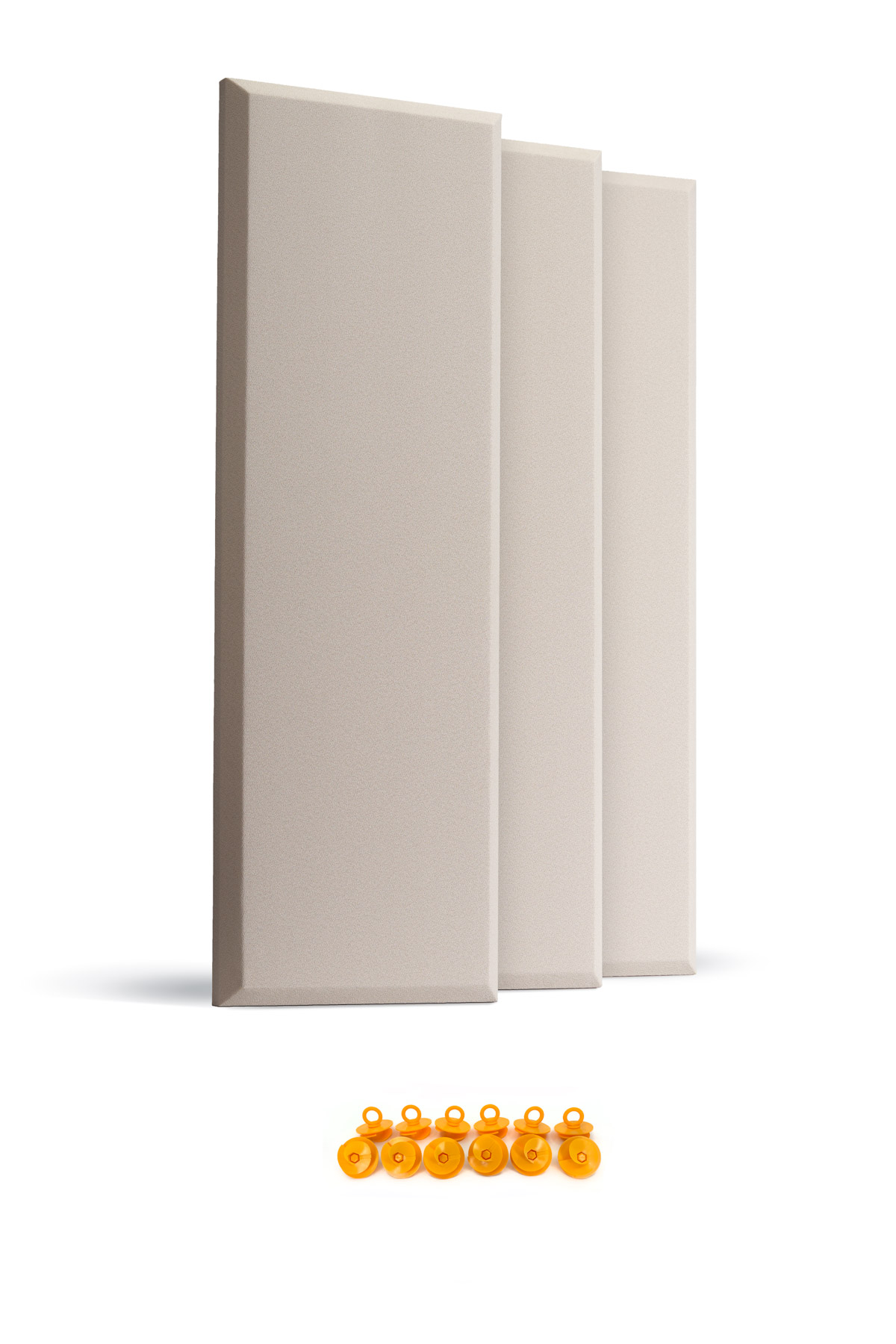

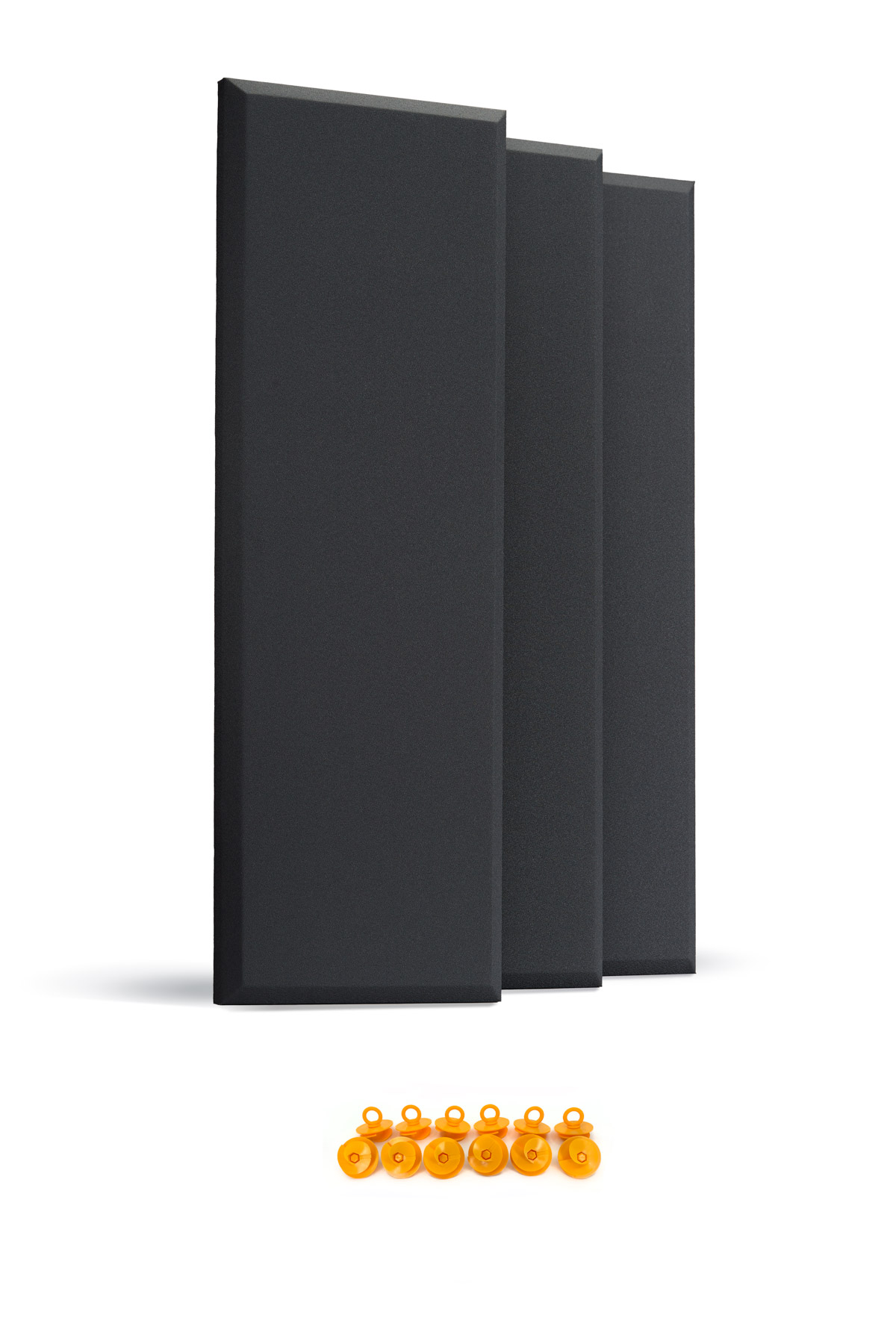

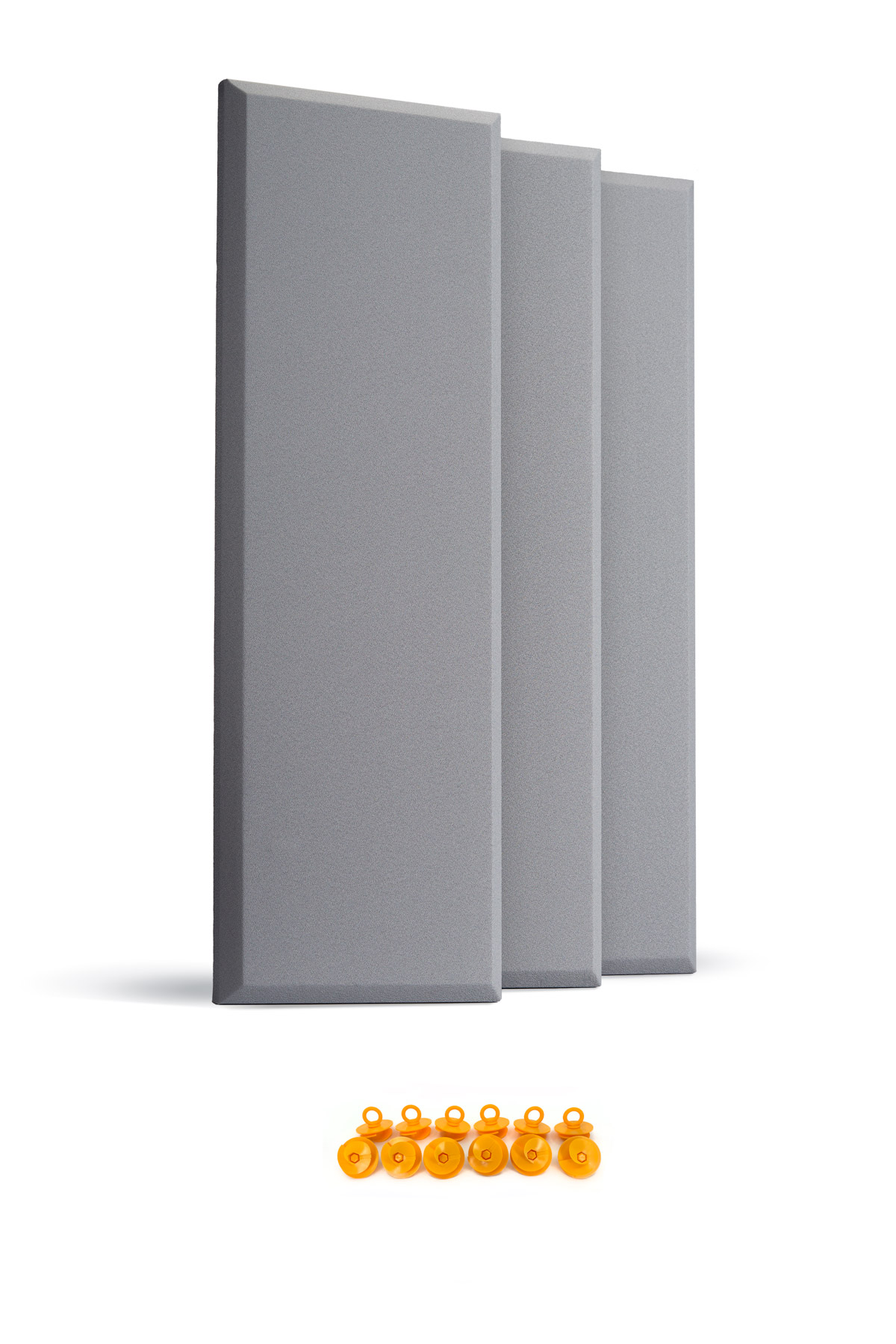

Our Cloud 3-Pack ships with three (3) 16"x48"x2" FulFill™ Acoustical Panels and hardware for suspended ceiling mounting.

• Specifications
• Sound Absorption
• Mounting Hardware
• Install Guide
• Shipping and Receiving

Specifications

Panel Core: 6-7 pcf fiberglass

Finish: Fabric, Guilford of Maine Anchorage Birch, Asteroid, and Graphite

Size: 16″x48″x2″

Edges: Beveled

Flammability: All components have a Class A rating per ASTM E84

Sound Absorption

Note: NRC test results are based on our standard acoustically transparent fabric. Results may vary with other fabrics. You can expect improved performance when suspending the panel from the ceiling and introducing an air gap behind the panel.

Mounting Options

(4) Rotofast™ Cloud Anchors for suspended mount per panel are included. We suggest cable or eyehooks to connect the eyebolt of the Cloud Anchor to your ceiling.

Install Guide

You’ll need:

• Layout for your room with dimensions, placement, and spacing of panels
• A clean work area
• Wall fasteners (anchors/screws (not provided).

Tools to have on hand:

• Pencil and Sharpie
• Masking Tape
• Level,
• Measuring Tape
• Screwdriver, Drill
• Something pointy/sharp(e.g., large nail, screwdriver, exacto knife…)

TIP: The cardboard dividers we include in every 3-pack to protect your panel during shipping are the same size as the panels themselves. They work great as a template for installing your cloud panels.

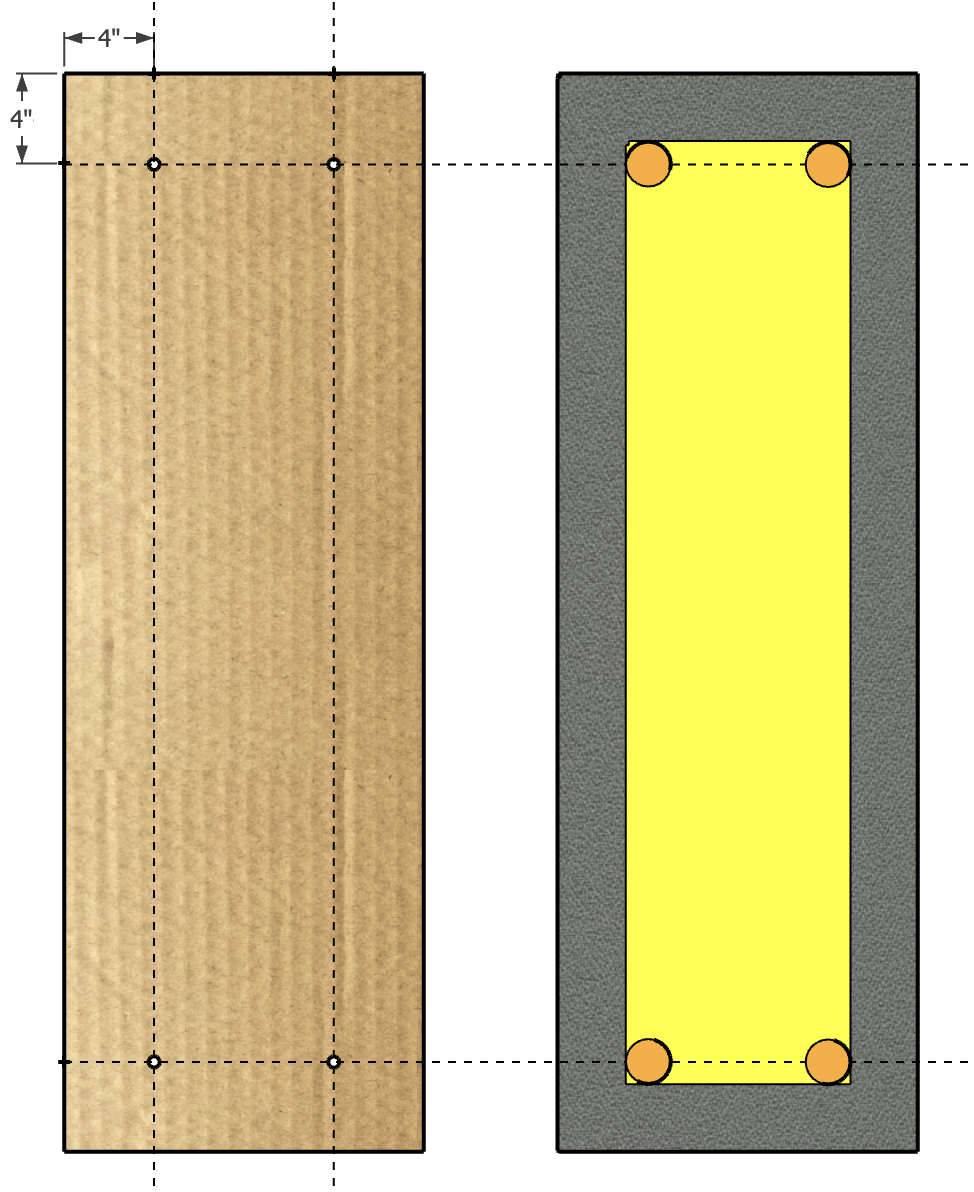

1. Using a 16"x 48" cardboard divider, mark a spot in each corner of the cardboard divider as shown. We suggest 4" in from each corner from the edges of the panel.

2. Use a sharp object and punch holes through the cardboard where you marked. (be careful not to damage any surface you are working on)

3. On a clean surface, place the panel face down (the fabric faces down, and the exposed back of the panel faces up). Lay the cardboard template on top of the panel and mark the panel with a Sharpie through the holes you created in step 2. (These will be where you install the cloud anchors to the panel.)

4. Place the cardboard on the ceiling where you want your Cloud Panel installed, and use a pencil to mark the holes you created in step 2 on the ceiling. Remove the template and attach your fasteners (not included) to the ceiling.

5. Screw in Cloud Anchors into the 4 locations you marked on the panel in step 3.

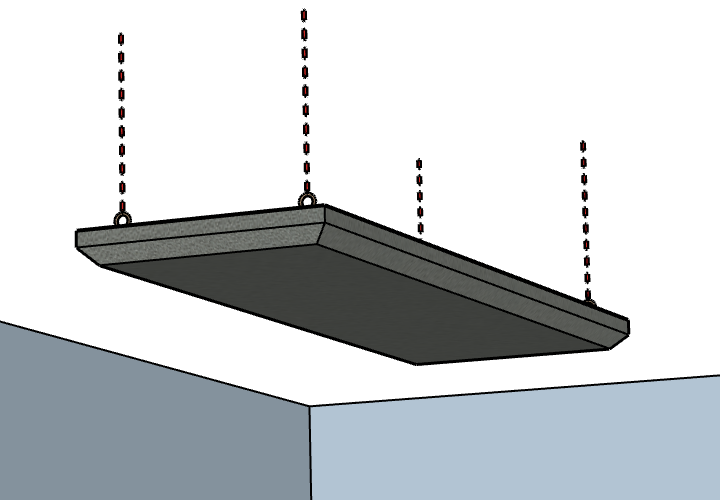

6. Hang panels by connecting Cloud Anchors to your ceiling fasteners.

Shipping and Receiving

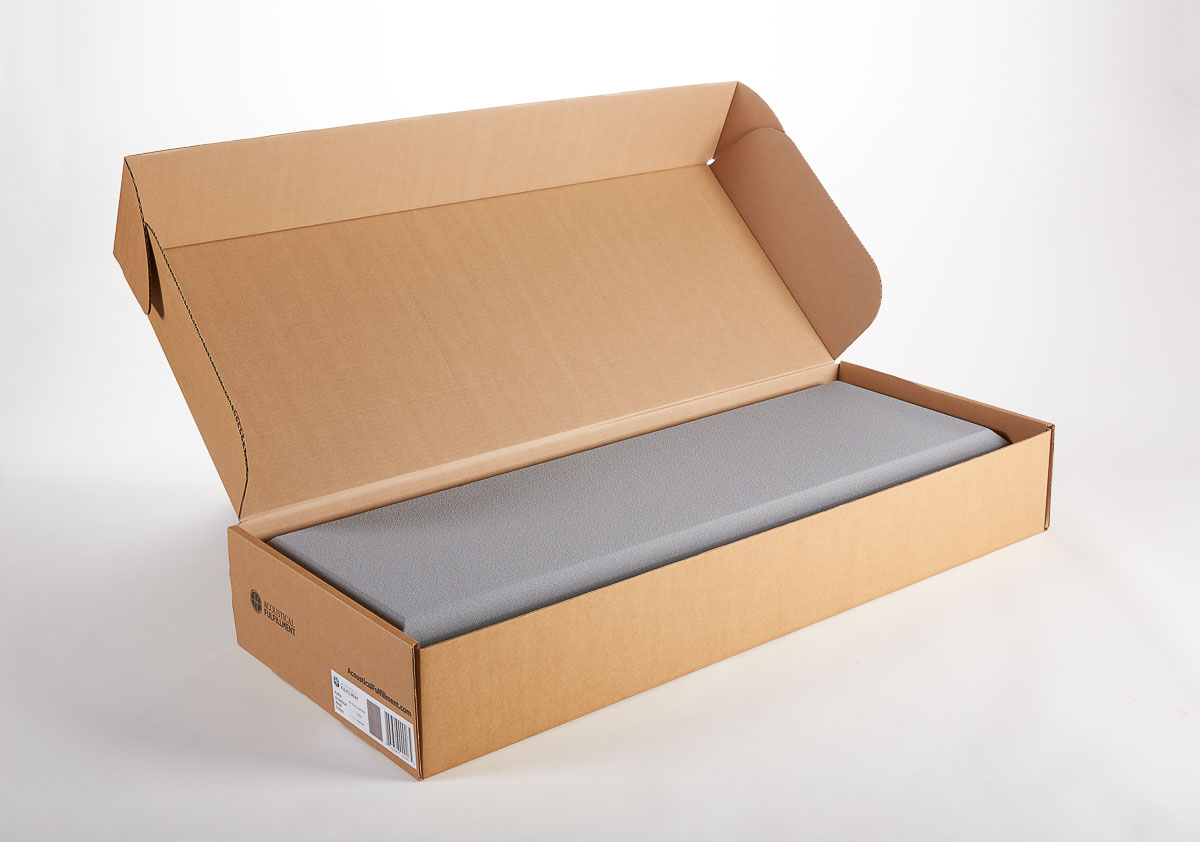

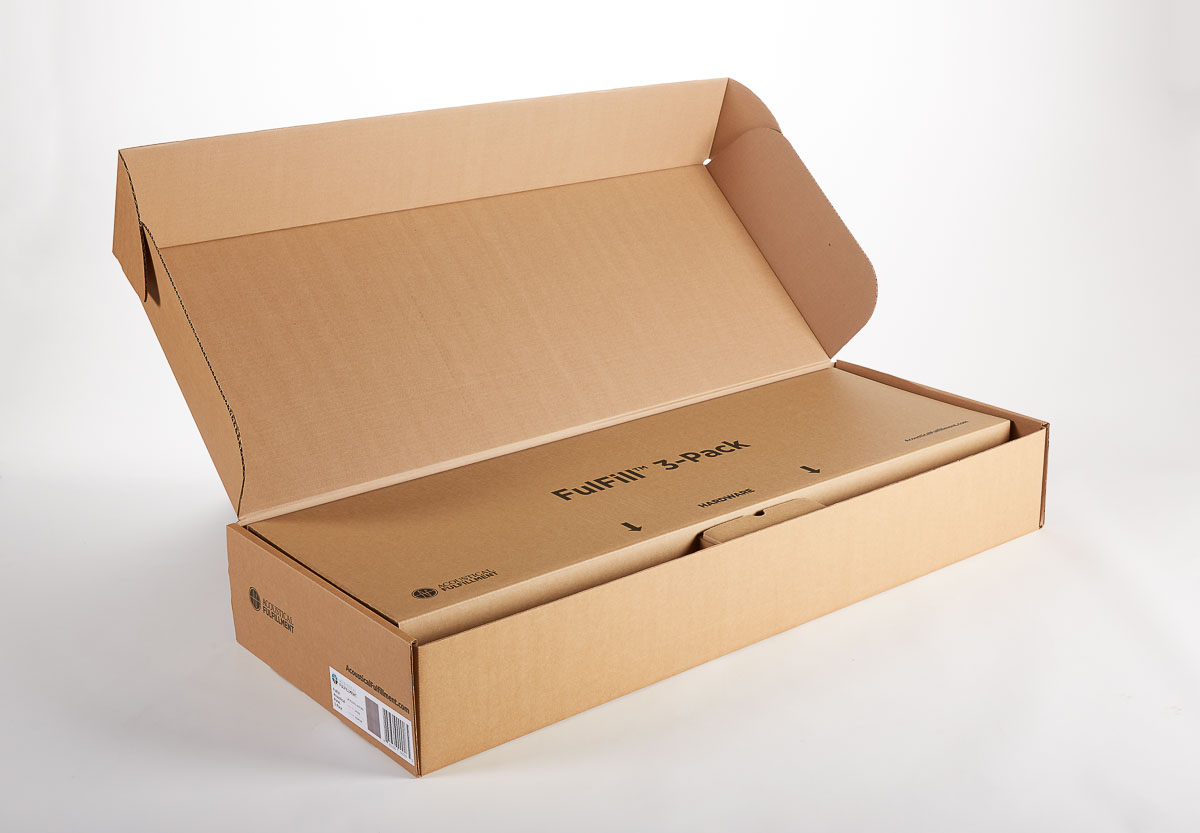

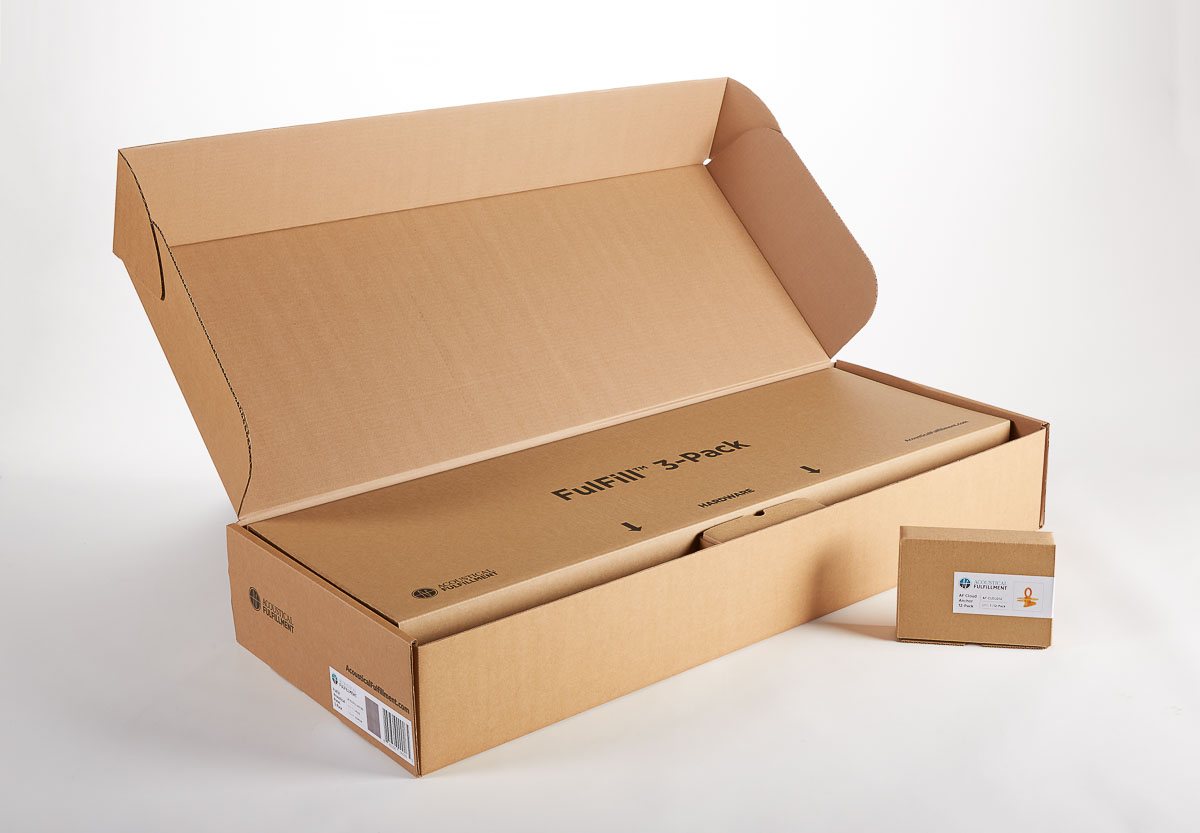

Our Cloud 3-Packs are shipped in high-quality, durable boxes designed to arrive safely and open easily in your location. They typically ship via UPS or FedEx Ground.

Included in each Wall 3-Pack:

(3) 16"x48"x2" beveled-edge FulFill Acoustical Panels

(12) Rotofast™ Cloud Anchors

(9) impaling clips (just in case your plans change and you decide to wall-mount a panel)

See Wall 3-Pack, Corner 3-Pack, StudioAF Room Kit, Barrel or Pyramid Diffuser 4-Packs and Flex-48 for convenient add-ons.
