Rotofast™ Metal Eye Cloud Anchors allow you to suspend up to 4' x 4' x 2" custom acoustical panels from a ceiling in a cloud formation. (We use our Cloud Ring mounting system to suspend mount custom ceiling panels larger than 4'x4'.)
Specifications
Material:
Stabilized polypropylene plastic. Non-reactive, will not chemically react with fiberglass binders.
Zinc finish 1/4 - 20 metal eye bolt.
Pull-out Strength: 45lb in 6lb / ft3 rigid fiberglass board
Mounting Instructions
1. Place the panel fabric side down on a clean surface and mark locations for the anchors on the back. Please make the marks 6 inches from the panel edge.
2. While pressing down, turn the Cloud Anchor clockwise and screw the anchor into the back of the panel at the marked location until the washer is flat on the back panel surface. Important: Don’t go past this point, as you could go through the panel face and damage the fabric.

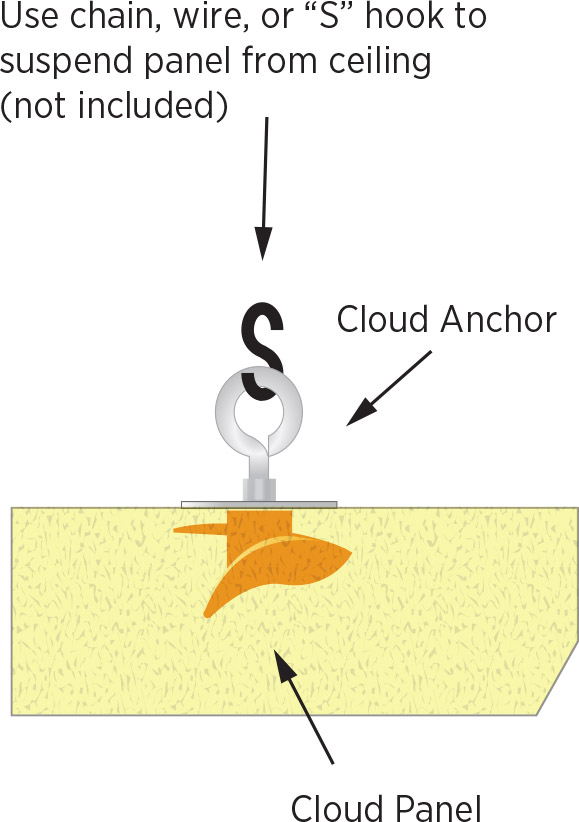

3. Repeat the process with all anchors. You are now ready to suspend the panels from the ceiling using whatever mechanical fastening the installation requires, such as wire, chain, or “S” hooks. (not included)
